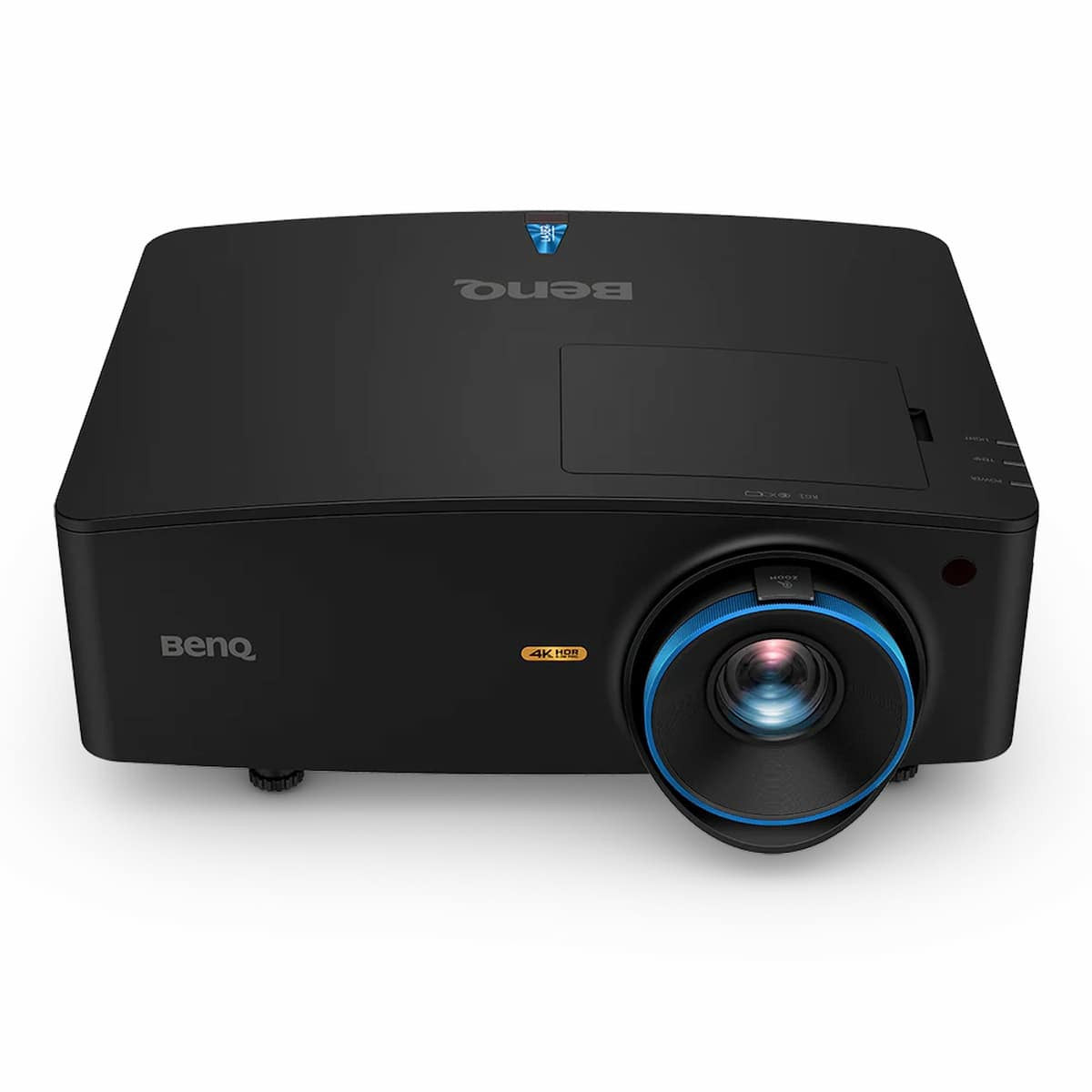

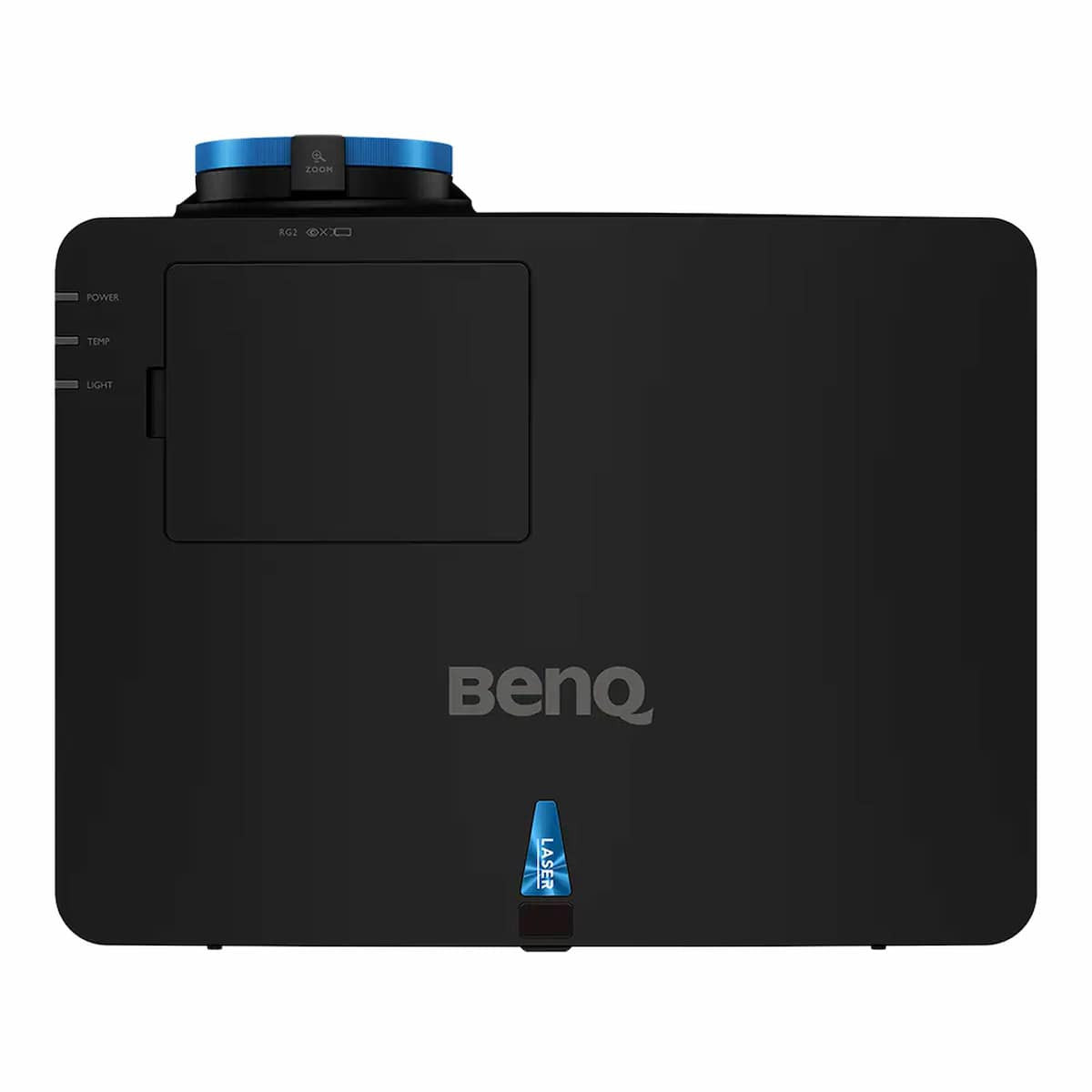

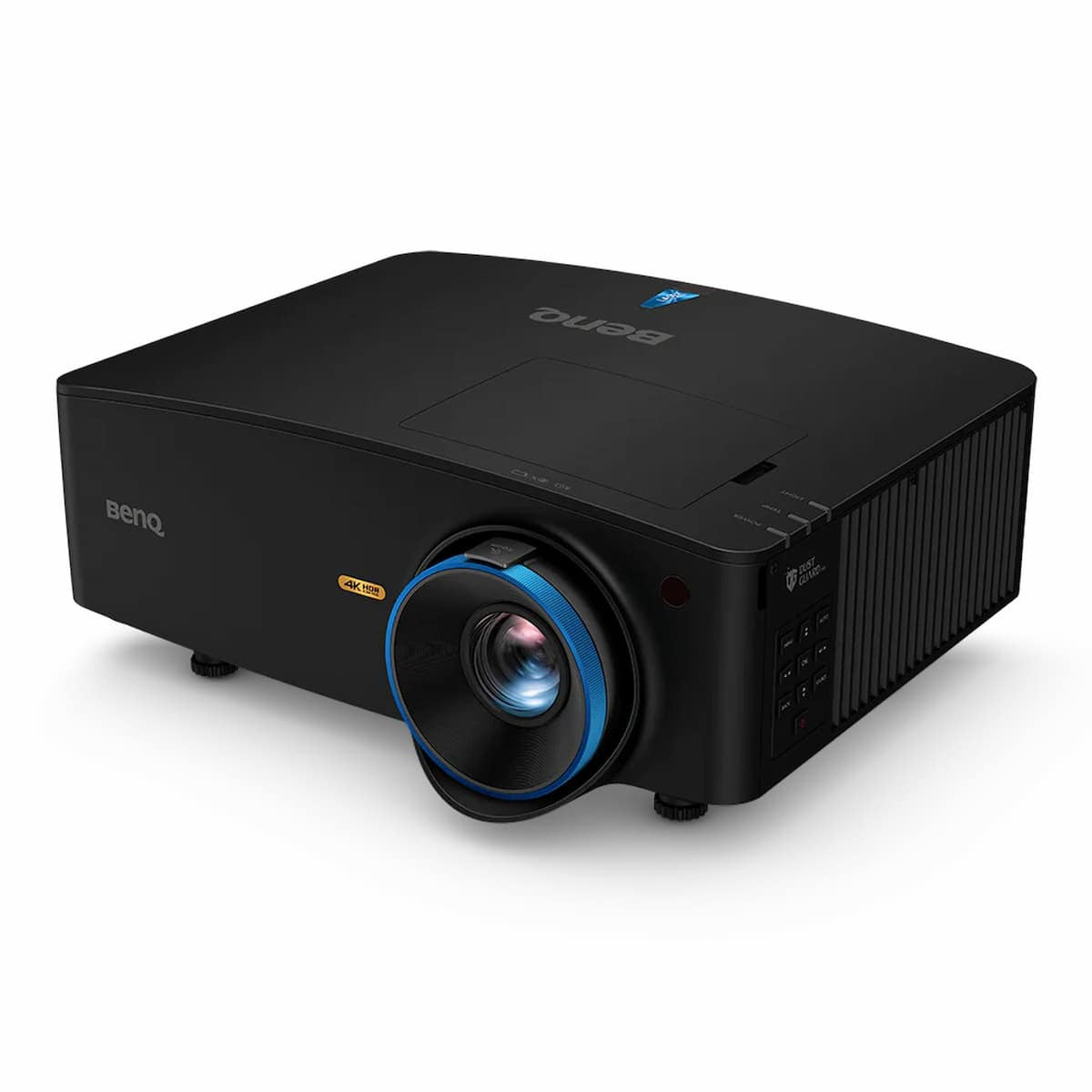

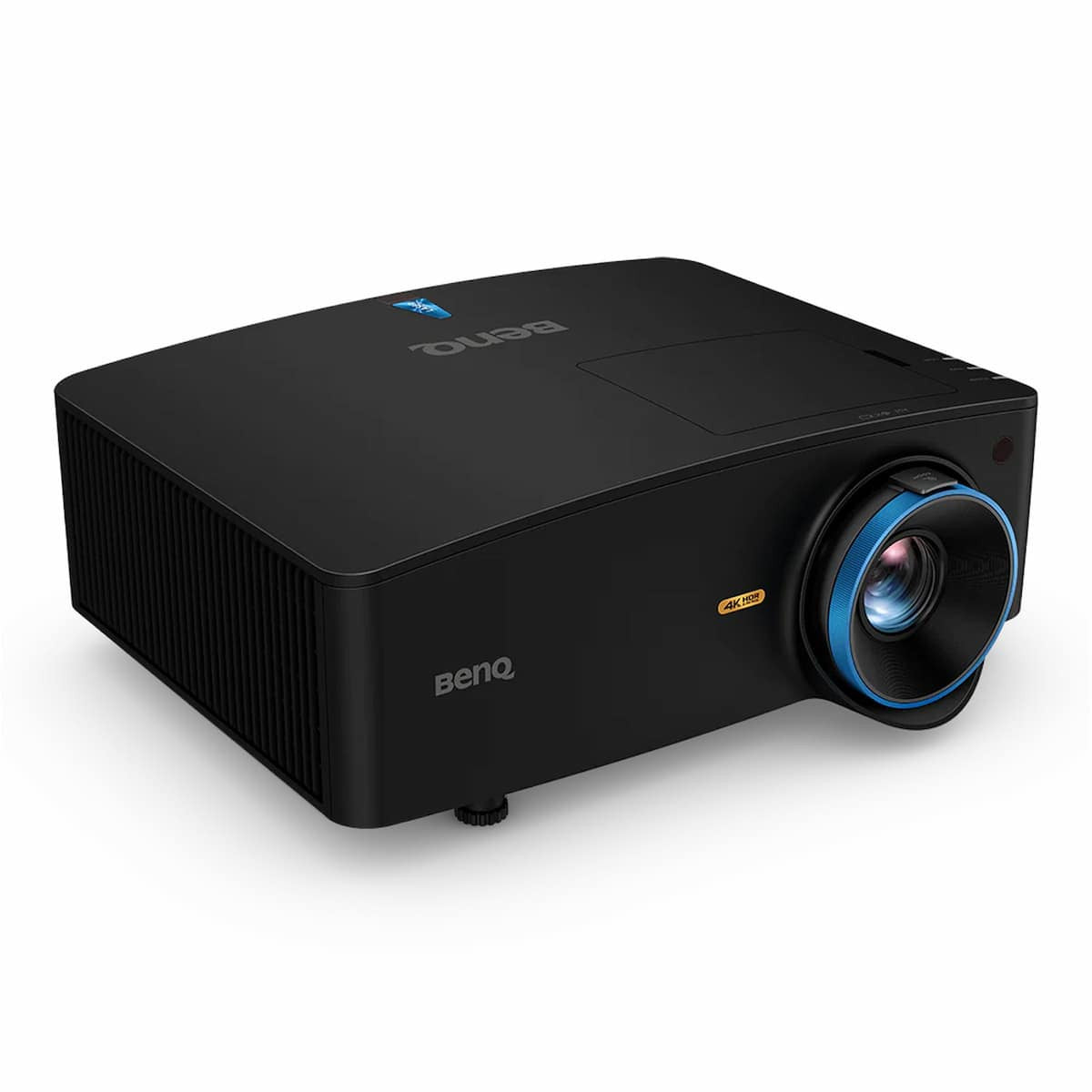

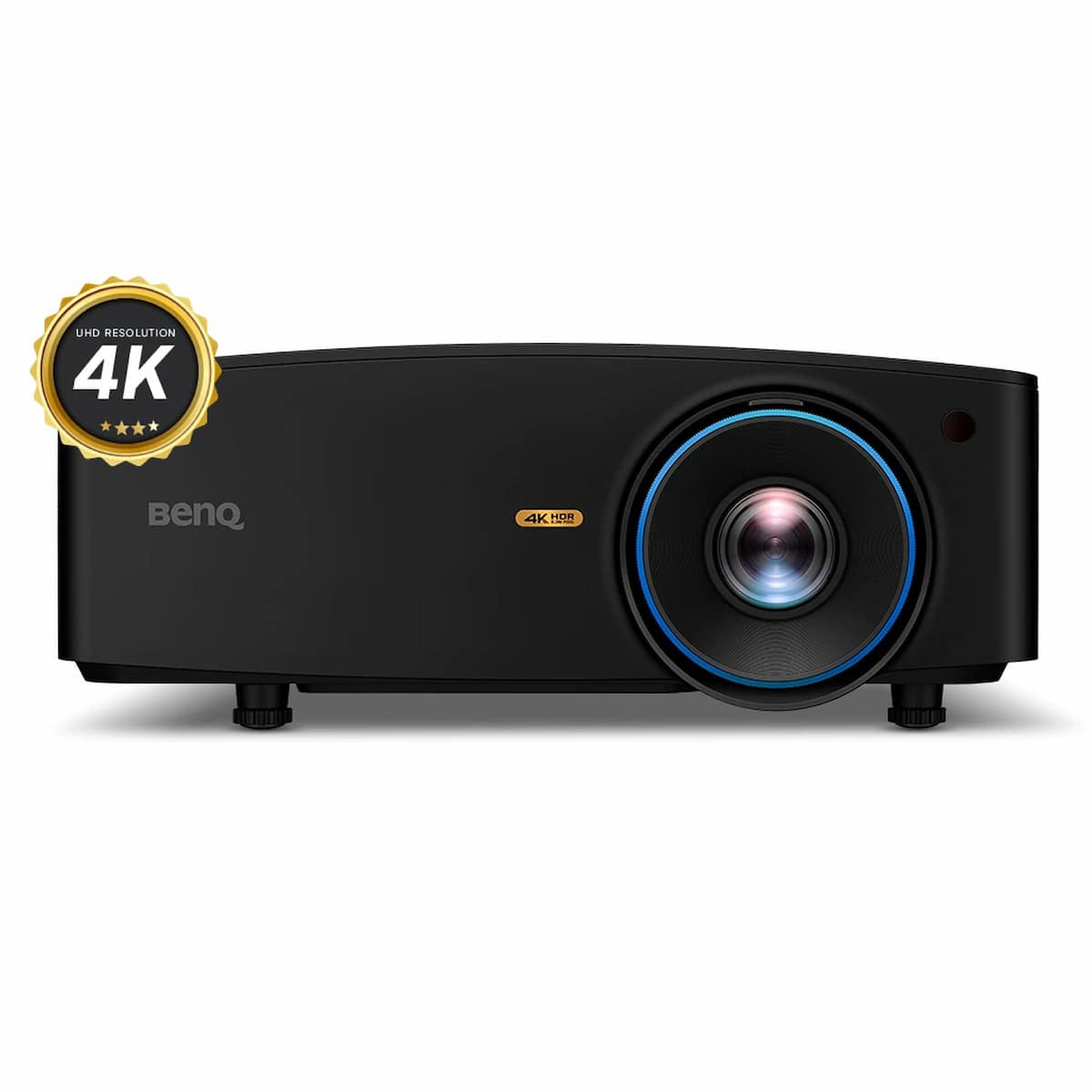

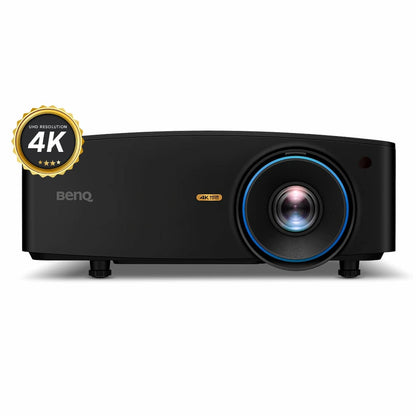

BenQ LK936ST 4K HDR Short Throw Laser Golf Simulator Projector
What's included
From order to ready-to-play.
Choose your preferred simulator configuration.
Finalize the details of your selected setup.
Your simulator is prepared to the selected configuration.
Delivery is coordinated for your completed simulator.
Specifications
Brightness (ANSI lumens): 5100
Native Resolution: 4K UHD (3840×2160)
Native Aspect Ratio: 16:9
Selectable Aspect Ratios: 16:9, 16:10, 4:3, 2.4:1
Contrast Ratio (FOFO): 3,000,000:1
Display Color: 30-bit (1.07 billion colors)
Light Source: Laser
Light Source Life: Normal: 20,000 hrs
Optical:
Throw Ratio: 0.81~0.89
Zoom Ratio: 1.1x
Lens: F/# = 1.83~1.86, f = 8.6~9.4
Projection Offset (Full-Height): 0%
Keystone Adjustment: 3D, Vertical ± 40 degrees; Horizontal ± 40 degrees; Rotation ± 40 degrees
Lens Shift Vertical: -60%~ +60%
Lens Shift Horizontal: -23%~ +23%
Picture:
Rec. 709 Coverage: 92%
Picture Modes: 3D, Bright, DICOM SIM, Golf, Infographic, Presentation, sRGB, User 1, User 2, Video
Compatibility:
Input Lag: 33.4 ms (1080p@60Hz)
Resolution Support: VGA (640 x 480) to 4K UHD (3840 x 2160)
Horizontal Frequency: 15K~135KHz
Vertical Scan Rate: 23~240Hz

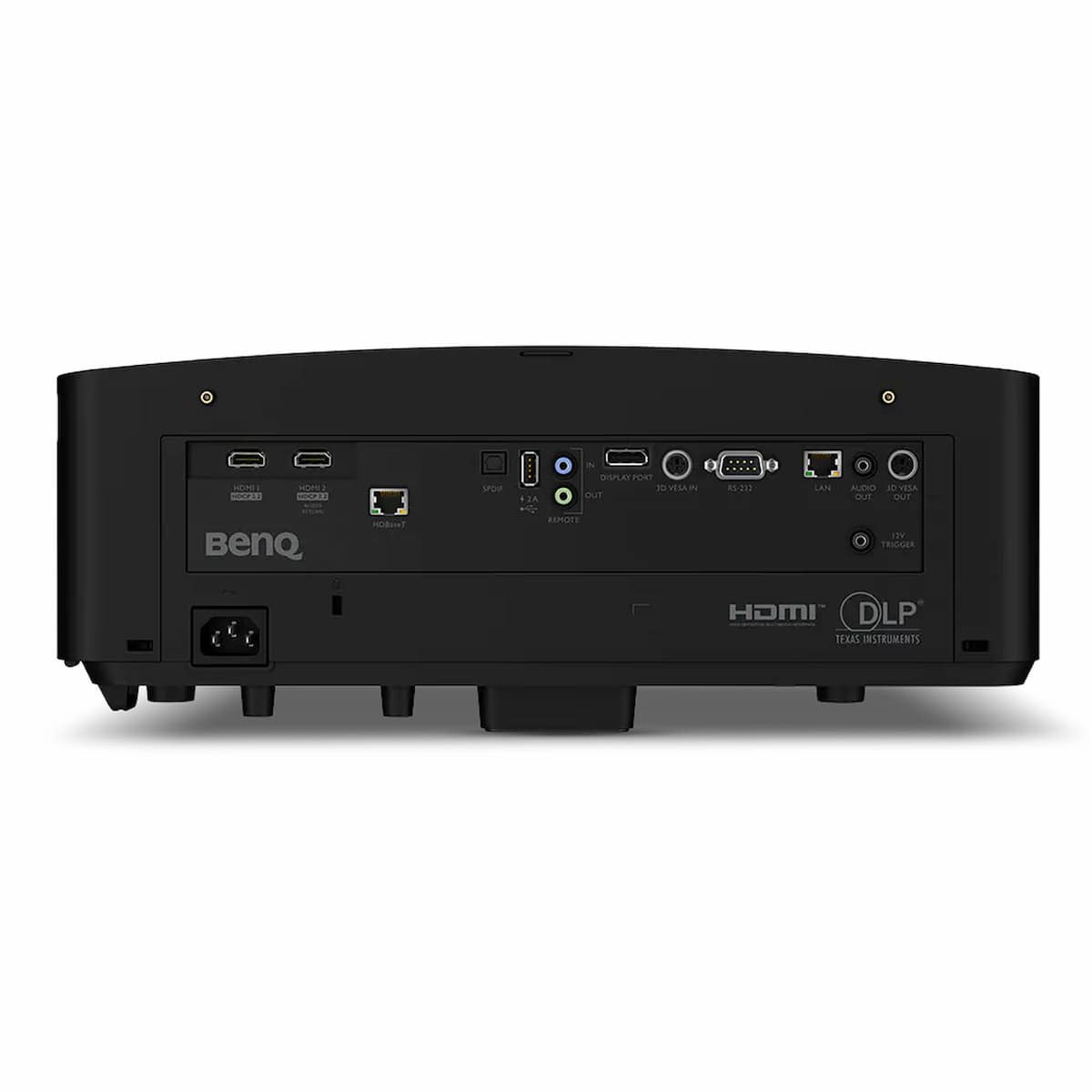

I/O Interface:
HDMI in: (x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)
Display Port: (x1)
LAN (RJ45): (x1)
HDBaseT (RJ45): (x1), Video/Audio
3D Sync in: (x1), VESA
3D Sync out: (x1), VESA
USB Type A: (x1), USB Type A-1 (2.0/Power Supply2.0A)
RS232 in (DB-9pin): (x1)
Wired Remote in (3.5mm Mini Jack): (x1)
Wired Remote out (3.5mm Mini Jack): (x1)
DC 12V Trigger (3.5mm Jack): (x1)
Audio:
Speaker: (x1), 10W
Audio out (3.5mm Mini Jack): (x1)
HDMI Audio Return: Yes, ARC, 5.1 channel
S/PDIF: Multi-Channel, RAW
Environment:
Operating Temperature: 0~40°C
Power Supply: AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V): 440W
Stand-by Power Consumption: <0.5W
Network Stand-by Power Consumption: <2W
Acoustic Noise (Typ./Eco.)(dB): 40/33
Accessories:
Remote Control w/ Battery: RCA011
Power Cord (by region): (Standard), x1 (1.8M)
HDMI cable: (Standard), 1.8m
3D Glasses: (Optional), DGD5
Installation Guide: 1 (8L)
Warranty Card (by region): Yes
Universal Ceiling Mount: (Optional), CM00G3
Dimension & Weight:
Dimensions (WxHxD) (mm): 416x166x351
Net Weight (kg): 7
Projection System:
Projection System: DLP
Product description
4K Clarity Built for the Golf Simulator
Bring your virtual course to life with the BenQ LK936ST 4K UHD Golf Simulator Projector, combining brilliant 4K resolution, powerful laser brightness, and short-throw flexibility for premium simulator spaces.
With 5,100 ANSI lumens, native 4K UHD (3840 × 2160) resolution, and a 3,000,000:1 contrast ratio, the LK936ST delivers detailed, vibrant visuals across everything from fairways and greens to on-screen shot data.
Big-Screen Golf in Less Space
The 0.81–0.89 short-throw ratio helps create a large projected image without requiring the projector to sit far from the screen—ideal for dedicated golf simulator rooms where placement matters.
Flexible lens shift and keystone adjustment give you additional freedom when dialing in your installation.
Built for Long-Term Play
BenQ's BlueCore laser light source provides up to 20,000 hours of light-source life, eliminating traditional lamp replacements while delivering consistent performance round after round.
With multiple connectivity options, built-in audio, and a dedicated Golf picture mode, the LK936ST is built to become the visual centerpiece of a serious golf simulator setup.
